Palram - Canopia

Palram Aquila 4500 Awning 15'x3' Clear

Regular price $1,269.00
Regular price Sale price $1,269.00
Shipping calculated at checkout.
Price Match Shipping Returns

The strong, steel support arms and anodized aluminum front and back trims of the Aquila 3000 are sleek and stylish. Modern, high end materials are neutral enough to match any home décor.

The Aquila doesn’t require any special tools for setup and the smart and fast locking system will have your door cover up in no time.  Keep your home entrance dry and protected from the elements in every season. The clear 100% UV protected polycarbonate panel allows light through but filters UV rays that can make your door fade and peel.

An integrated front gutter directs rainwater off to the sides.  When mounting the awning on lap siding or anchoring to wall studs, an Aquila 1500 siding kit, (sold separately), is recommended.


Feature:

  • Strong and durable-protection from harsh weather throughout the year
  • High impact, clear 4 mm solid panel, naturally immune to 100% of the harmful UV rays

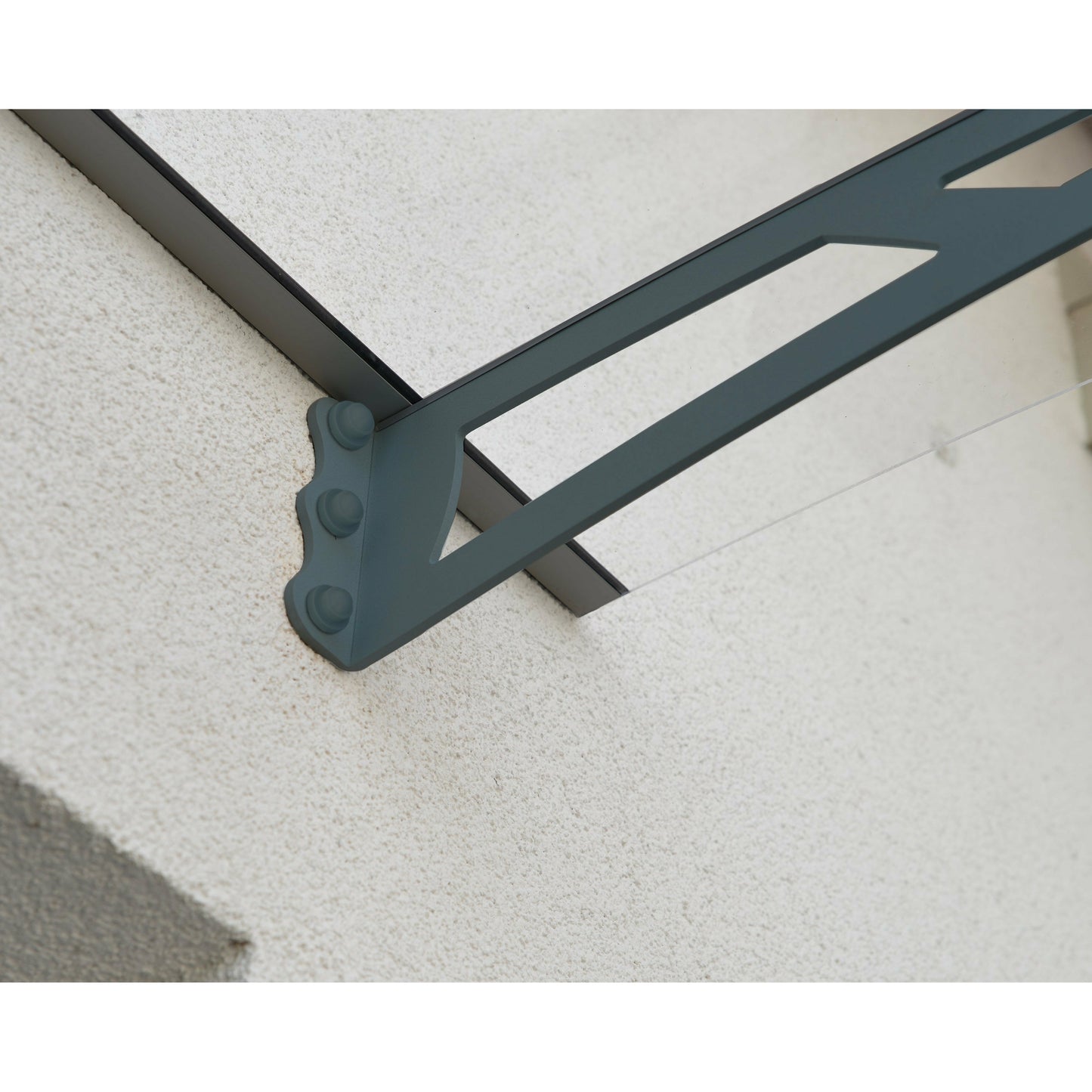

  • Laser cut, dark gray powder coated, galvanized steel support arms
  • Front aluminum trim helps direct rainwater sideways
  • Easy DIY assembly kit - includes installation hardware, no special tools required

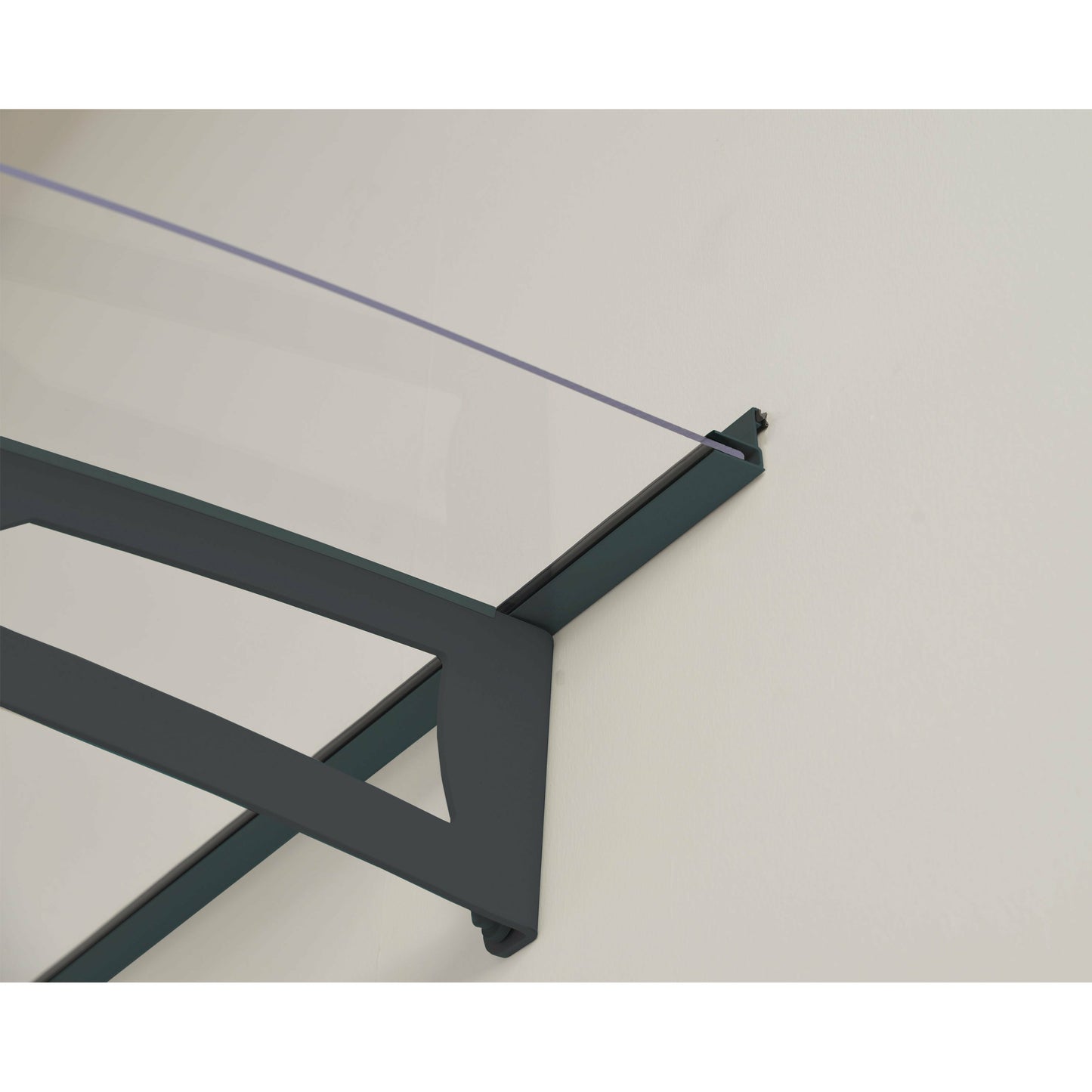

  • Back hidden rubber gasket seals canopy to the wall surface and prevents water seepage
  • Maintenance free design
  • Mounting kits (sold separately) are recommended when attaching to horizontal lap siding or for anchoring to wall studs


Specifications:

Model: HG9505
Limited Warranty: 3 years

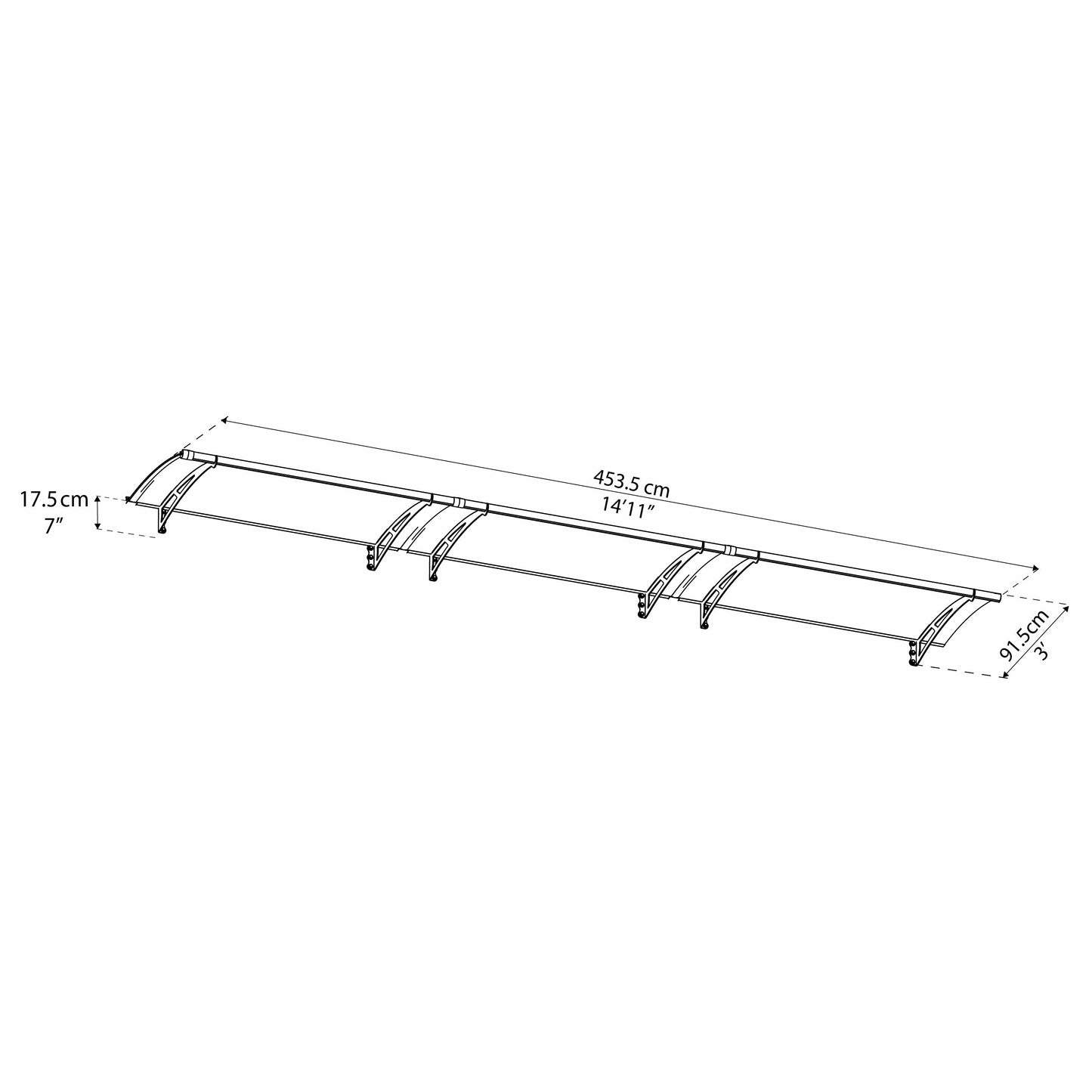

Size (ft, rounded): 15 x 3
Dimensions (ft, rounded): 15 x 3
Length (in): 178.3
Width (in):
 36.25
Height (in, peak): 6.5
Total Product Weight: 111.5
Snow Load (Lbs/Sq Ft): 20.5
Windload (MPH): 75
Light Transmission (%): 90
Roof Material: 4mm Polycarbonate
Roof Color: Clear
Frame Material: Galvanized Steel
Frame Color: Gray
Frame Color Number: RAL 7016
Ship Method: LTL
Lift Gate Available For Additional Charge: Y
Total Box Qty (Calculated): 5
Box 1 Qty: 3
Box 1 Part No: HG9500
Box 1 UPC: 894275000670
Box 1 Name/Desc: Aquila 1500 Clear
Box 1 Length: 59.5
Box 1 Width: 36
Box 1 Height: 2.5
Box 1 Weight: 37.5
Box 2 Qty: 2
Box 2 Part No: HG9591
Box 2 UPC: 763552426826
Box 2 Name/Desc: Aquila Connect Kit - Gray
Box 2 Length: 40
Box 2 Width: 3
Box 2 Height: 3
Box 2 Weight: 4
Box - Bundle Length: 60
Box - Bundle Width: 36
Box - Bundle Height: 14
Box - Bundle Weight: 121
Pallet Length: 64
Pallet Width: 40
Pallet Height: 18.5
Pallet Weight: 170.5
Density: 6.45
Class: 125
Sub: 5
SHIPPING FROM CITY, STATE, ZIP: Bloomington, MN 55431
COUNTRY OF ORIGIN: Israel
ASSEMBLY REQUIRED: Yes
MINIMUM SHIPPING LEADTIME (DAYS): 3
MAXIMUM SHIPPING LEADTIME (DAYS): 5
Owner's Manual
