Palram - Canopia

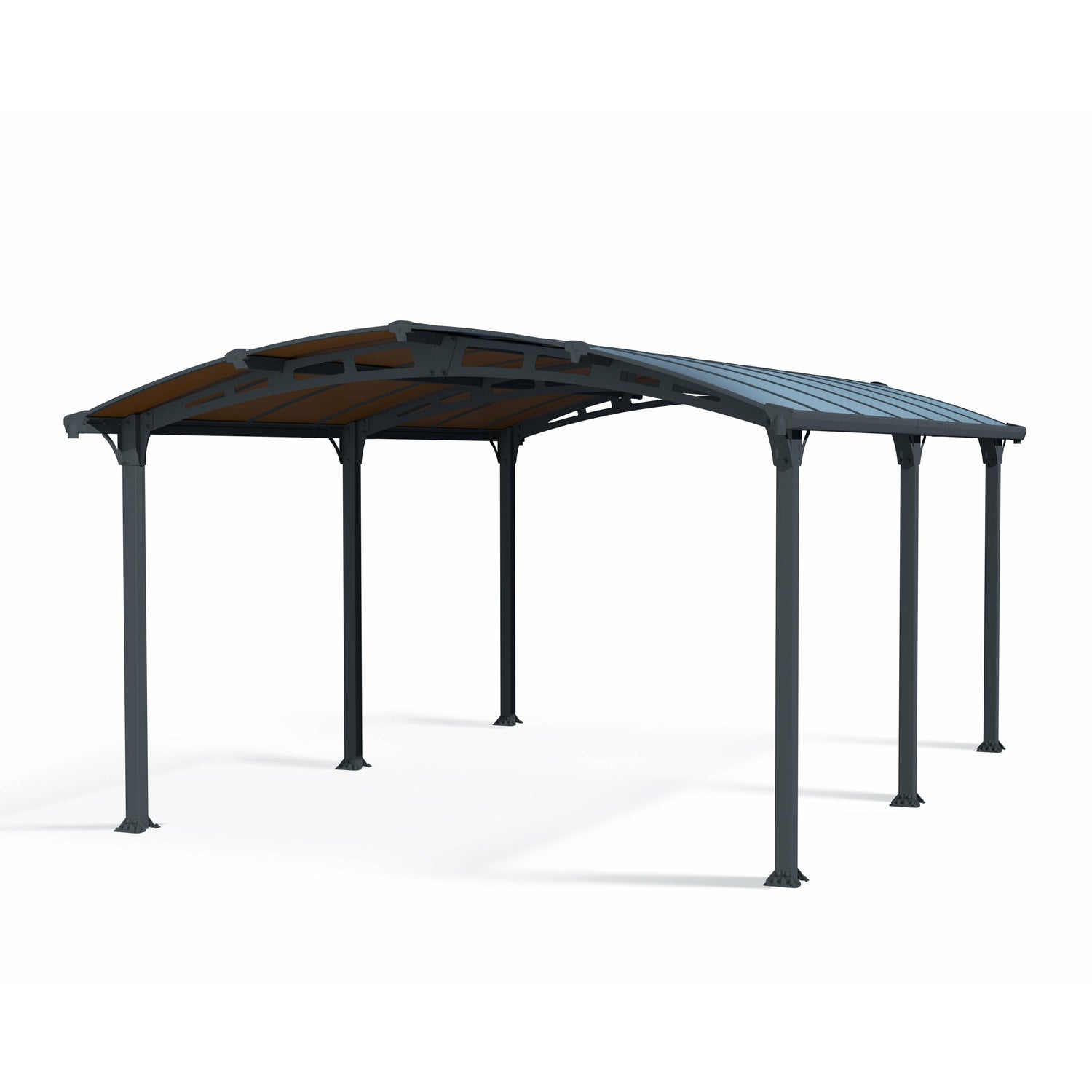

Palram Arcadia 12 x 16 Carport

Regular price $3,949.00
Regular price Sale price $3,949.00
Free Shipping to 48 States
Contact Us

Price Match Shipping Returns

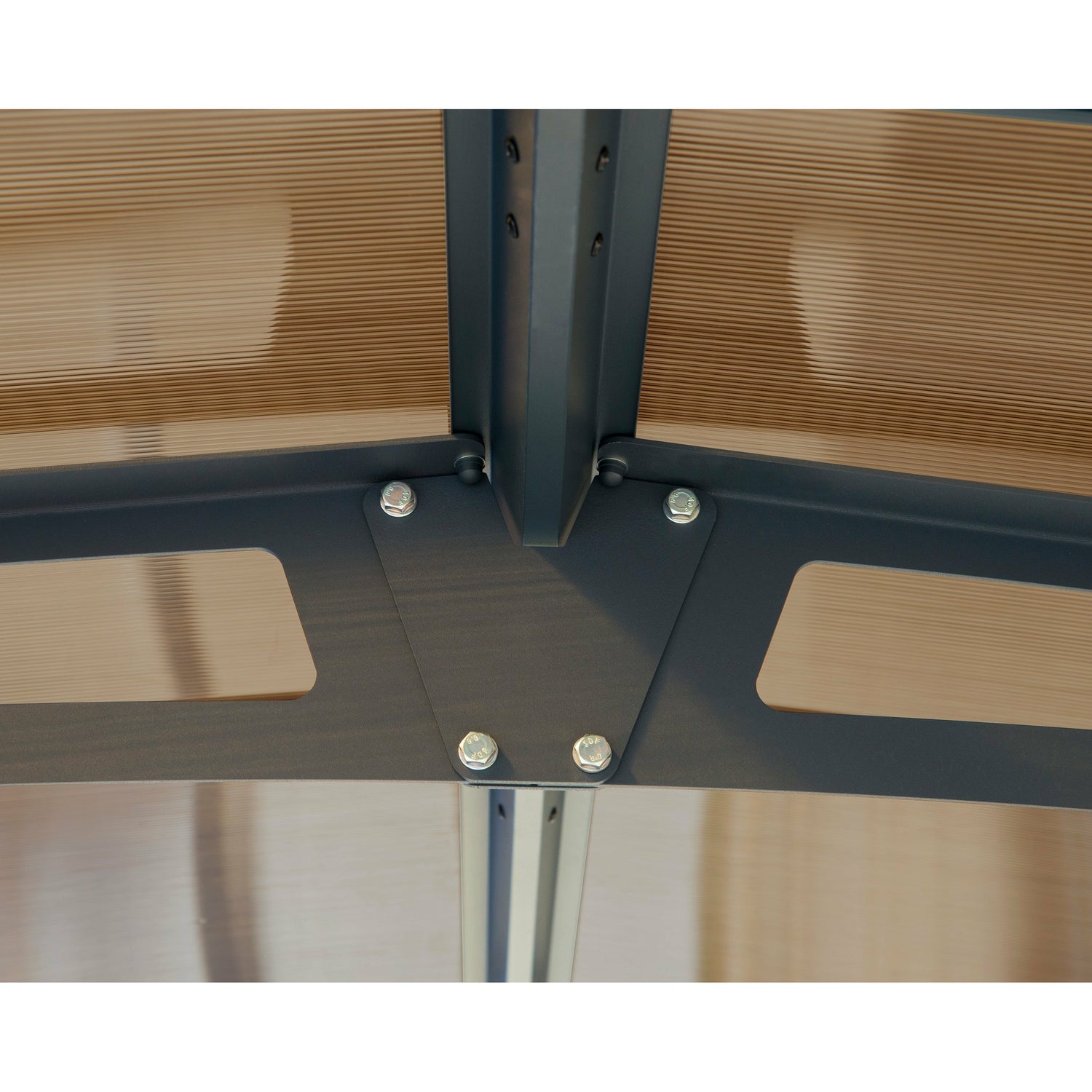

The Arcadia 12' x 16' Carport/Patio Cover is designed to be installed easily by 2 people within a few hours and does not require building skills or special tools. The virtually unbreakable, 100% UV protected bronze 6mm thick roof panels simply slide into place-no need to get on the roof to secure them. It comes with pre-drilled holes, pre-cut panels and included screws as well as an anchor kit for securing your carport.

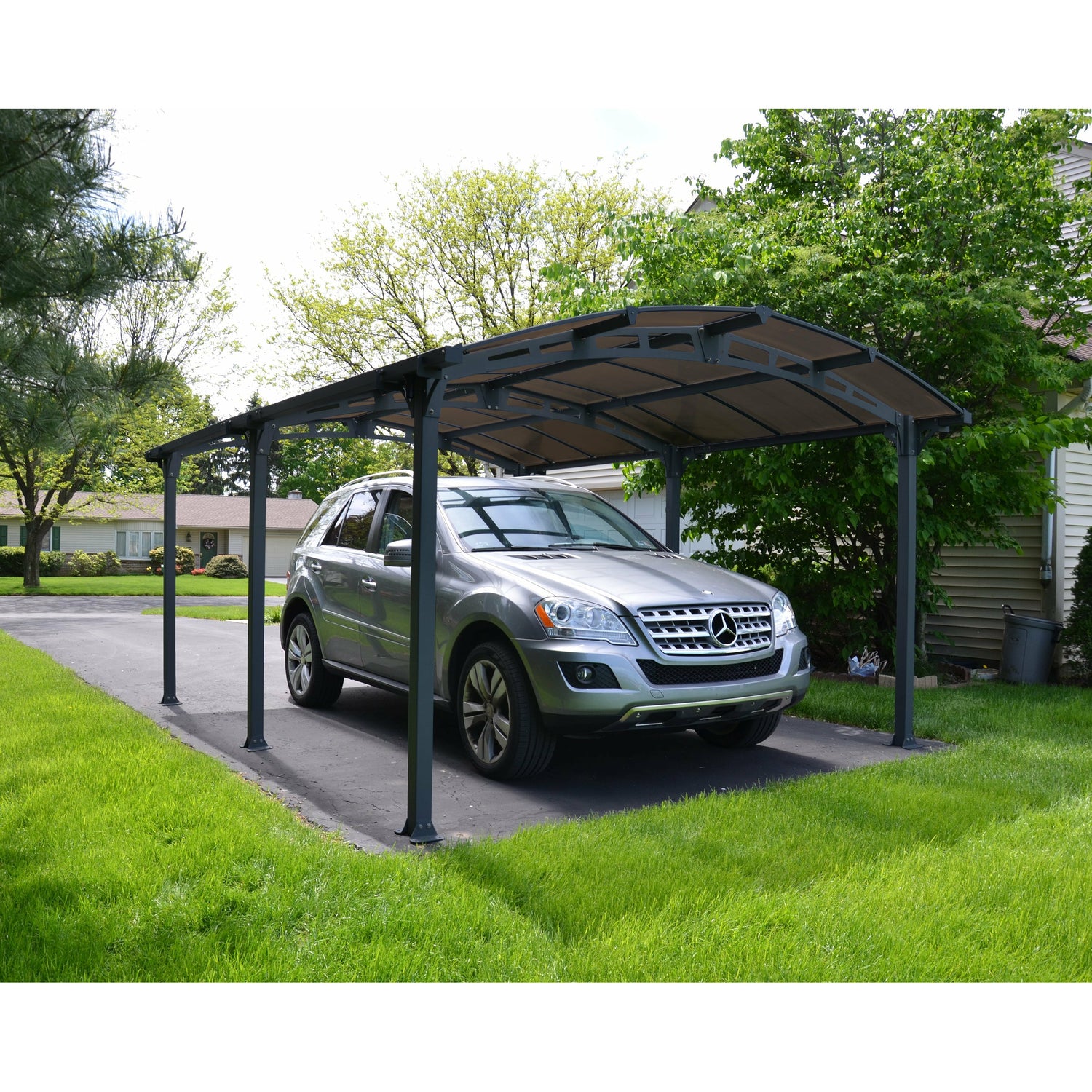

This stylish and durable shelter will protect your vehicle or outdoor recreation space from snow, rain, leaves and harmful UV rays. The sturdy, powder coated gray aluminum and galvanized steel frame is rust resistant, easy to clean with your garden hose, and has 30lbs/sq. ft. snow load with 50% margin of safety.

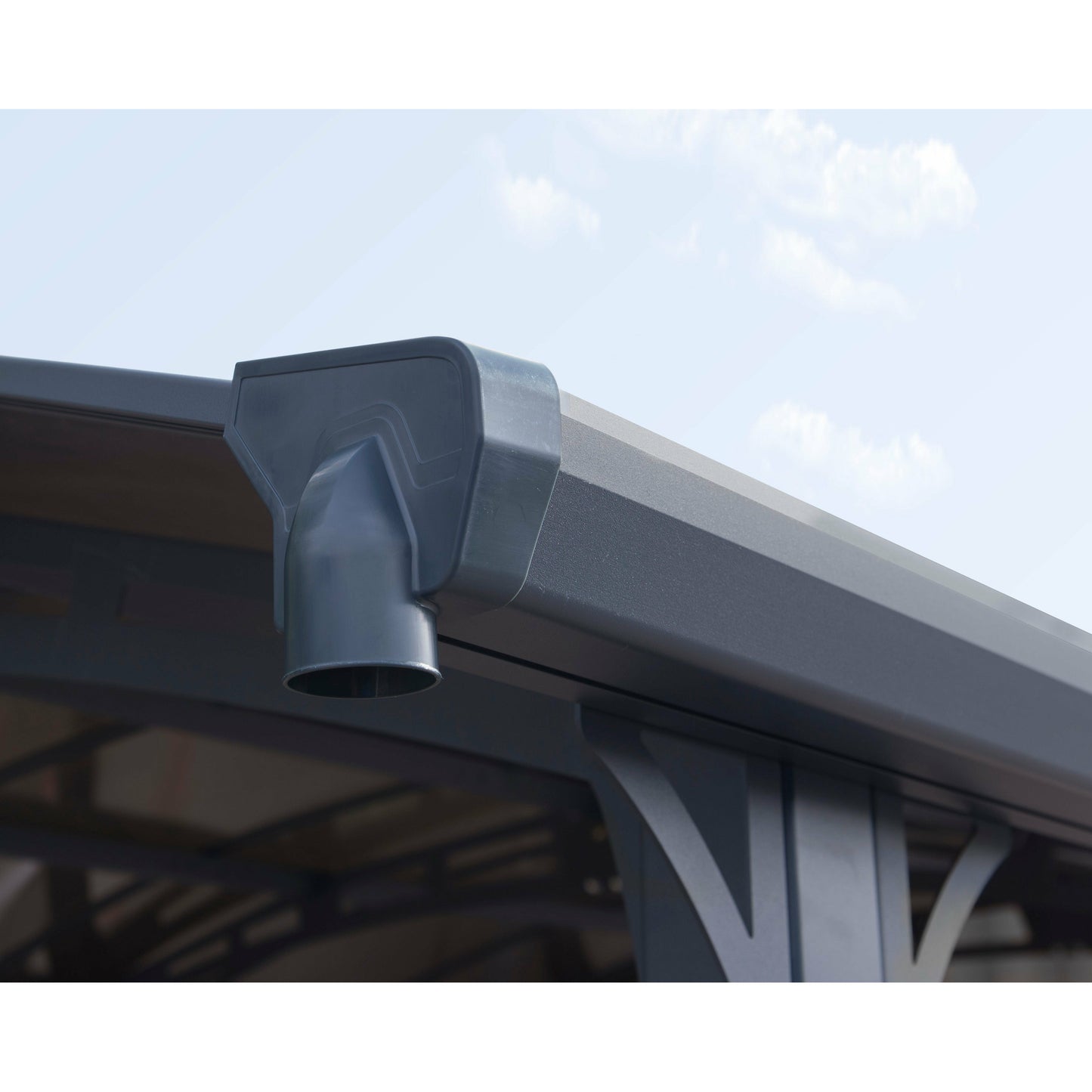

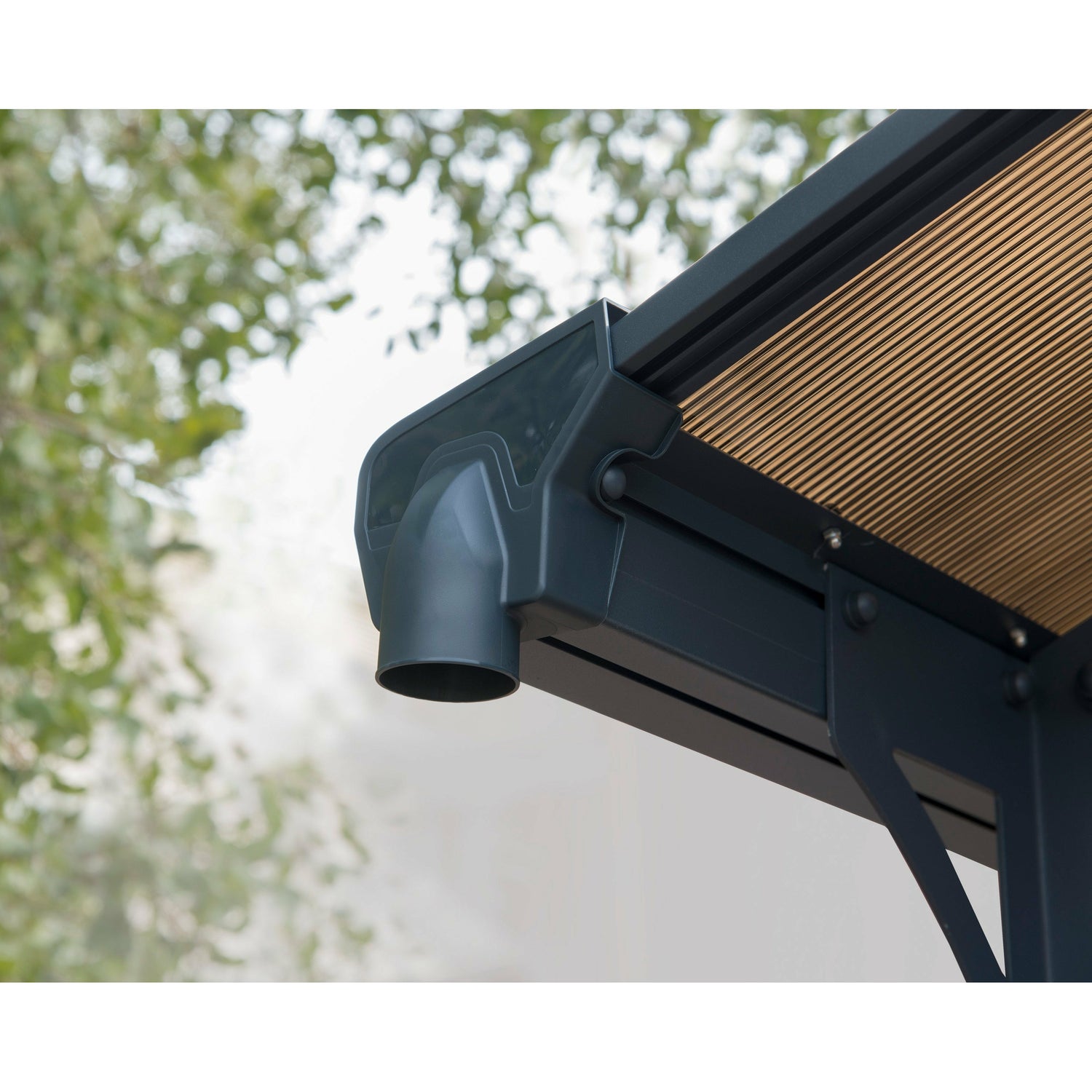

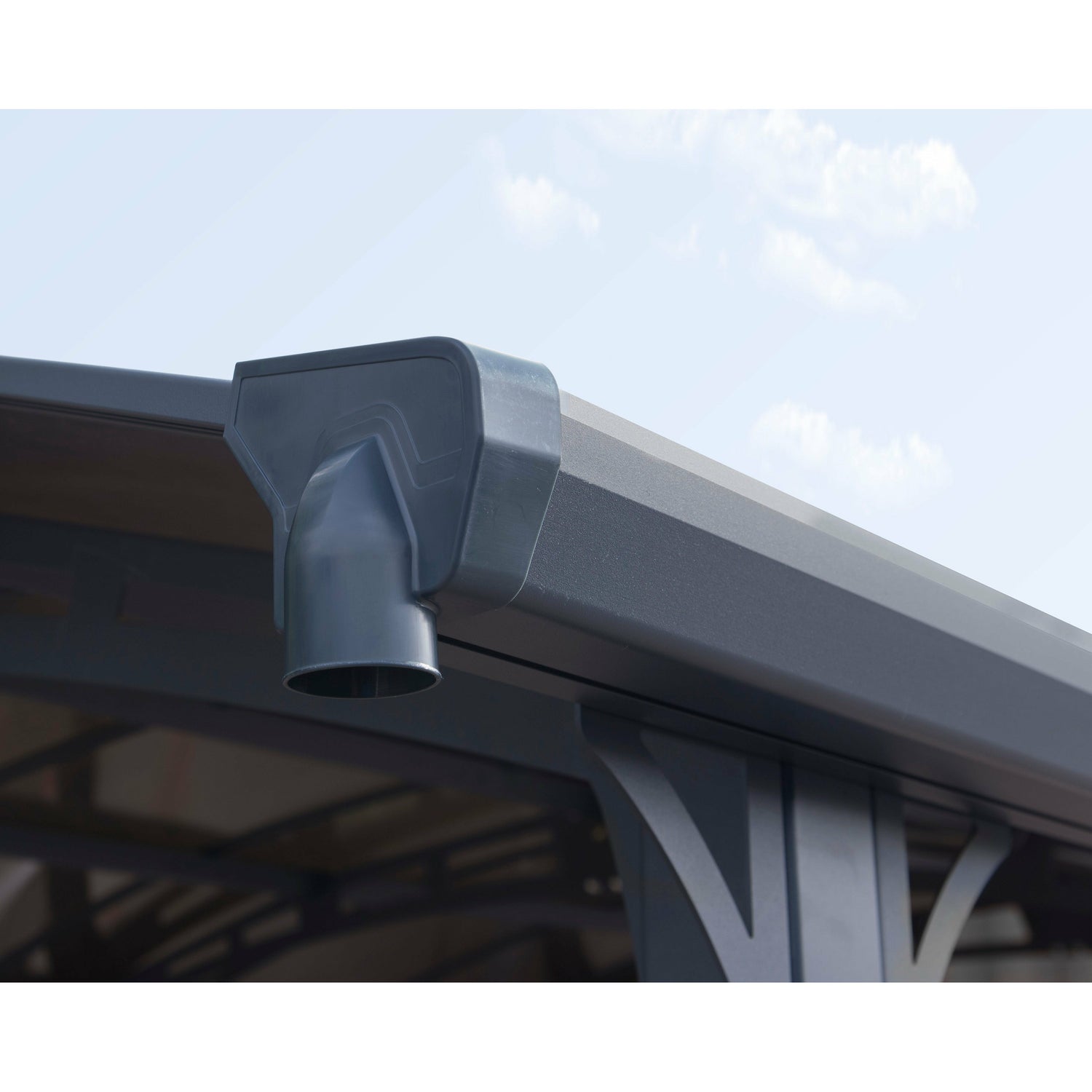

The Arcadia has great features, including: two gutters, with downspout, to direct rain away from the sides, wide entry with high clearance and a great re-assembly option in case you need to change locations.

A smart choice for your car or patio, the Arcadia can also be used as an outdoor kitchen, temporary gathering shelter or play area for children.


  • Multi-purpose as a carport or a patio cover
  • 6 mm virtually unbreakable bronze polycarbonate panels block up to 99.9% harmful UV radiation that won't yellow or become brittle over time and allows about 15% light transmission
  • Robust aluminum frame provides a durable, strong and corrosion resistant structure - powdered coated gray for extra protection

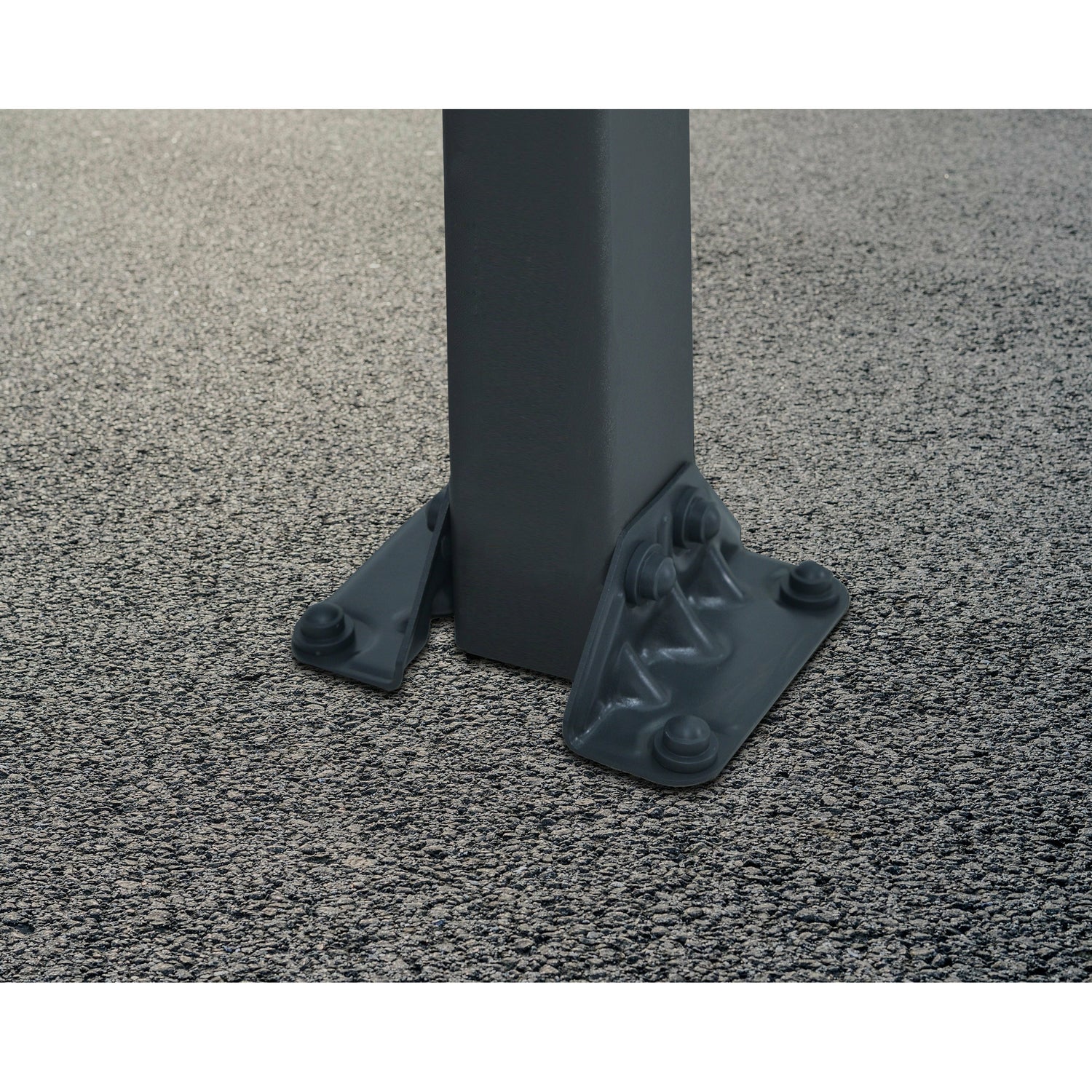

  • Includes integrated rain gutters and anchoring kit
  • 10 Year Limited Warranty


Model: HG9100
Limited Warranty: 10 years
Size (ft, rounded): 16 x 12
Dimensions (ft, rounded): 16 x 12 x 8
Length (in):
Width (in):
Height (in, peak): 95

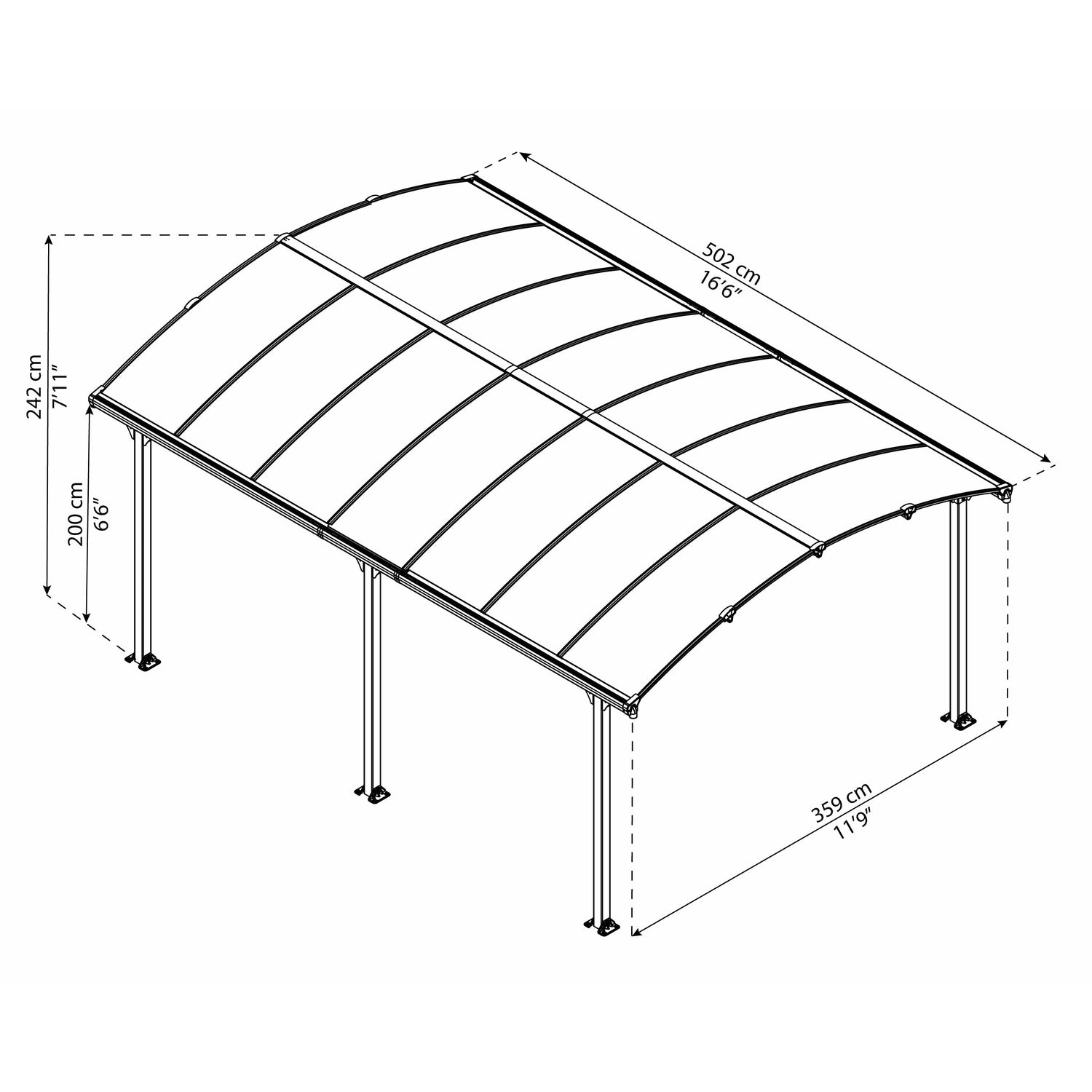

Dimensions (in): 197.6" L x 141" W x 95" H
Sidewall Height (in): 78
Head Room (feet): 7.6
Total Product Weight: 368
Snow Load (Lbs/Sq Ft): 30.7
Windload (MPH): 75
Light Transmission (%): 15
Roof Material: 6mm Twin Wall Polycarbonate
Roof Color: Bronze
Frame Material: Galvanized Steel
Frame Color: Gray
Ship Method: LTL
Lift Gate Available For Additional Charge: Y
Total Box Qty (Calculated): 3
Box 1 Qty: 2
Box 1 Part No: HG9114
Box 1 UPC: 763552425676
Box 1 Name/Desc: Arcadia Base Kit
Box 1 Length: 85.4
Box 1 Width: 29.9
Box 1 Height: 5.5
Box 1 Weight: 134.5
Box 2 Qty: 1
Box 2 Part No: HG9116
Box 2 UPC: 763552425423
Box 2 Name/Desc: Arcadia Small Ext.
Box 2 Length: 80.3
Box 2 Width: 29.5
Box 2 Height: 5.1
Box 2 Weight: 97
Box - Bundle Length: 85
Box - Bundle Width: 30
Box - Bundle Height: 16
Box - Bundle Weight: 366
Pallet Length: 89
Pallet Width: 38
Pallet Height: 16
Pallet Weight: 450
Density: 10.11
Class: 92.5
Sub: 7
Owner's Manual
