Palram Arizona Wave Dbl Carport Arch-Style

Regular price $9,999.00
Regular price Sale price $9,999.00
Free Shipping to 48 States
Contact Us

Palram - Canopia

Shipping Price Match Returns Why Choose Planet Greenhouse?

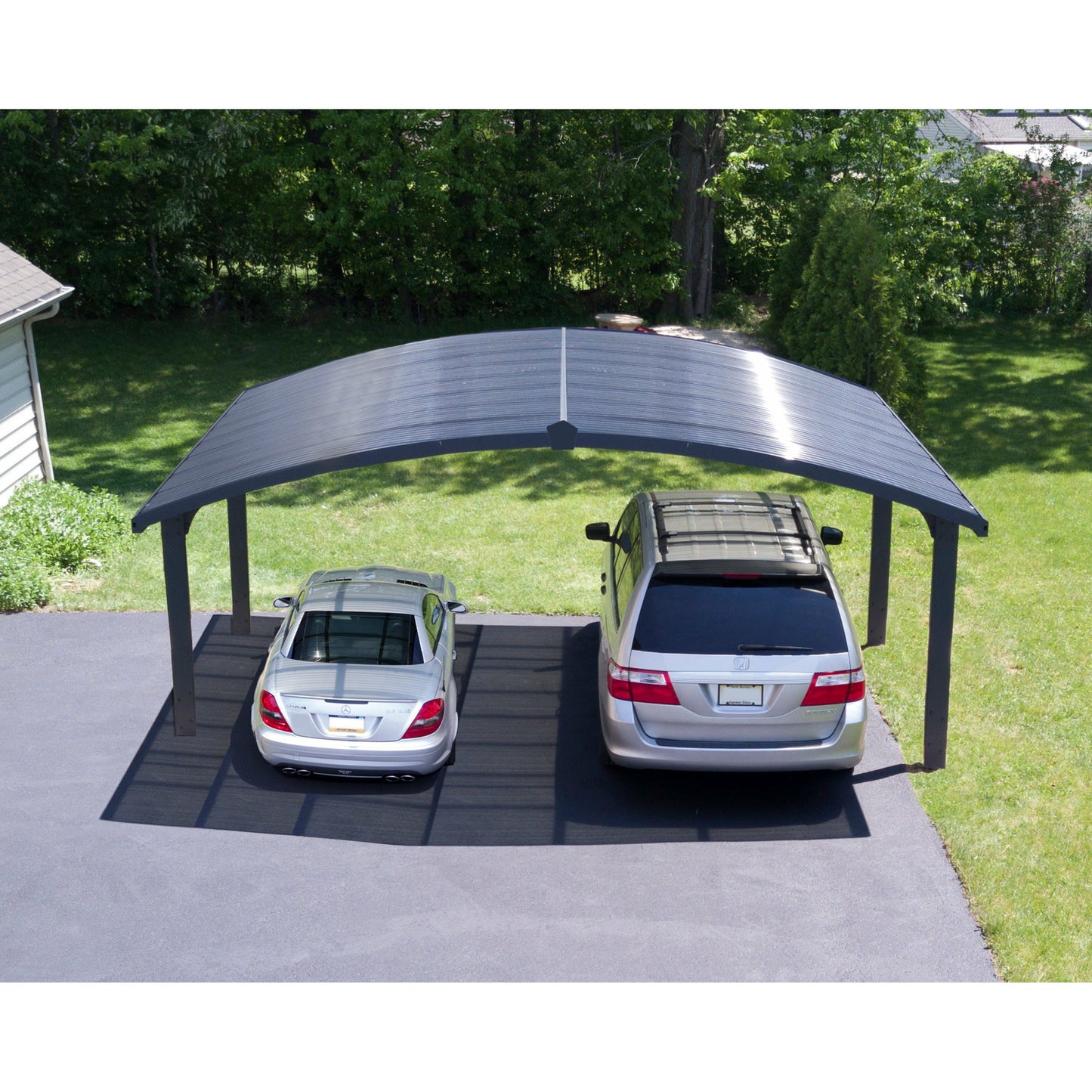

The unique styling of the Arizona Wave Double Carport provides an extra-large multi-functional structure that protects your cars, RV, or boat and can also be used as an outdoor entertainment space. The innovative arch construction eliminates the need for center support posts which allows for space saving and easier access over traditional double carports.

The frame and roofing system is engineered to be maintenance free -  no rust, rot or peel, and will support snow loads up to 15.4 lbs./sq. ft. and wind speeds up to 75 MPH.  The solar gray roof panels are made of virtually unbreakable corrugated polycarbonate that blocks 100% of harmful UV rays while providing 10% light transmission.

A built-in gutter system diverts water away from the structure.  For areas prone to severe winds or heavy snowfall, additional detachable support poles are available.

BEFORE ORDERING, be sure to check your local building and zoning codes & guidelines and ensure that any/all appropriate permits have been obtained.  Concrete footings are required for installation.


Feature:

  • Large, 19' double width with no center support interference
  • High impact solar gray polycarbonate roof panels provide 100% UV protection and 10% light transmission

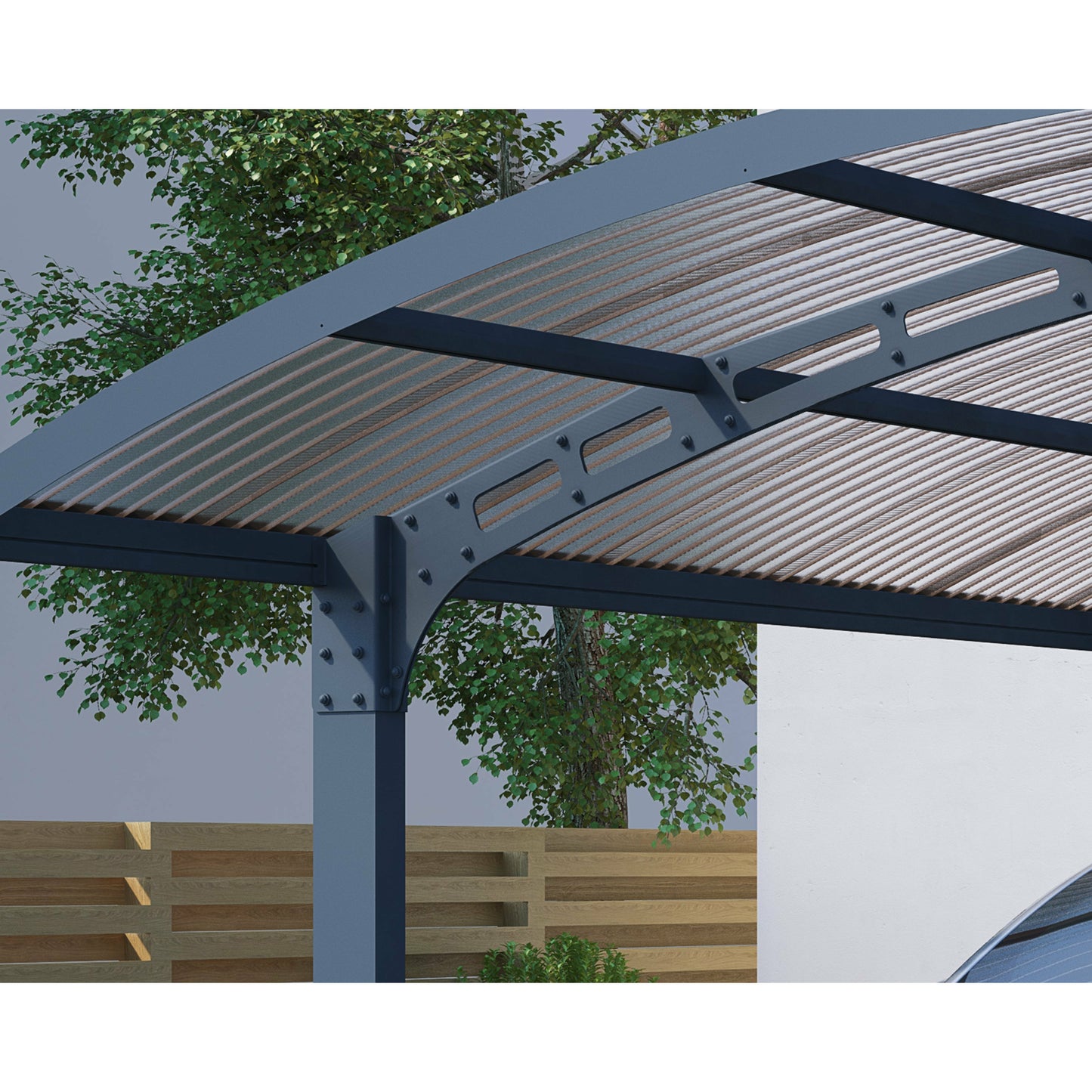

  • Heavy-duty gray powder coated aluminum frame with laser cut galvanized steel connectors
  • Integrated rain gutter
  • Supports snow loads of 15.4 lbs./sq ft and wind speeds of 75 MPH
  • Maintenance free - no rust, rot, or peel
  • 10 Year limited warranty and US based customer support


Specifications:

Model: HG9104
Limited Warranty: 10 years

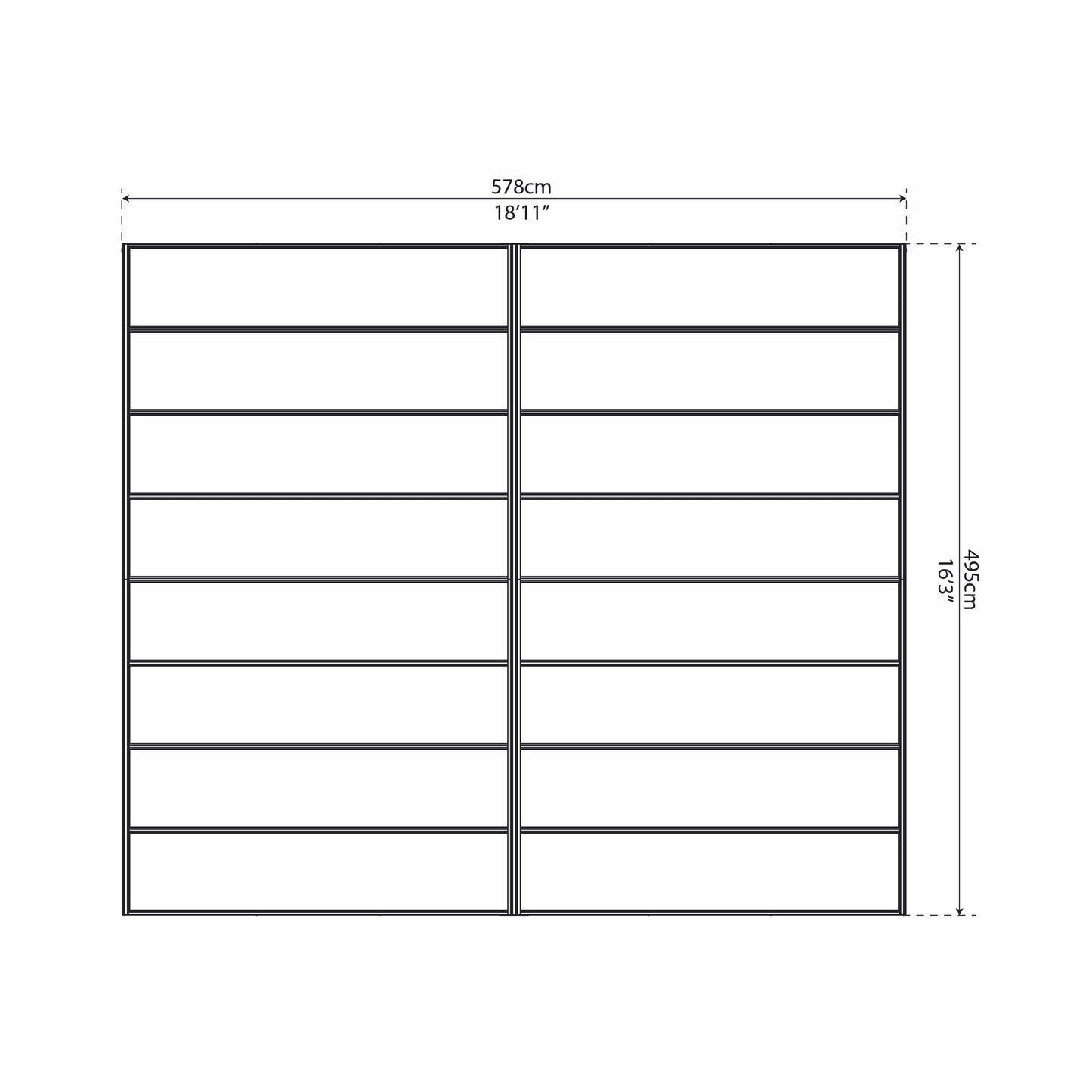

Size (ft, rounded): 19 x 16
Dimensions (ft, rounded): 19 x 16 x 9
Length (in):
 227.4
Width (in):
 194.7
Height (in, peak): 107.7

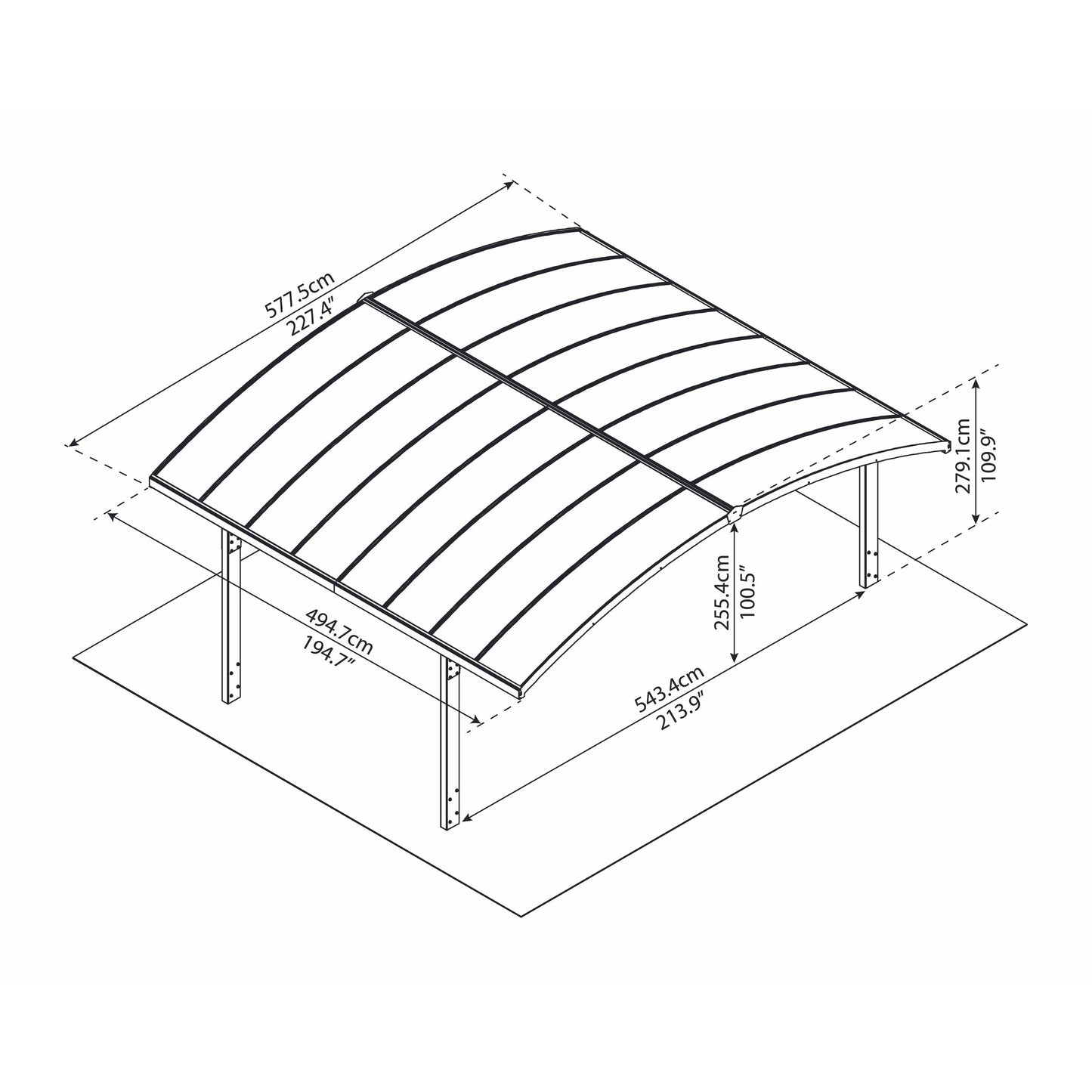

Dimensions (in): 194.7" L x 227.4" W x 107.7" H
Head Room (feet): 8.7
Total Product Weight: 835
Snow Load (Lbs/Sq Ft): 15.4
Windload (MPH): 75
Light Transmission (%): 10
Roof Material: Polycarbonate
Roof Color: Gray
Frame Material: Aluminum
Frame Color: Gray
Ship Method: LTL
Lift Gate Available For Additional Charge: N
Total Box Qty (Calculated): 5
Box 1 Qty: 2
Box 1 Part No: HG9105
Box 1 UPC: 763552424051
Box 1 Name/Desc: Frame
Box 1 Length: 116.5
Box 1 Width: 28.7
Box 1 Height: 4.1
Box 1 Weight: 260.2
Box 2 Qty: 2
Box 2 Part No: 704272
Box 2 UPC: 763552424068
Box 2 Name/Desc:  Roof Panels
Box 2 Length: 116.5
Box 2 Width: 28.7
Box 2 Height: 5.9
Box 2 Weight: 165.4
Box 3 Qty: 1
Box 3 Part No: HG9108
Box 3 UPC: 763552428707
Box 3 Name/Desc:  Connector Kit
Box 3 Length: 27.6
Box 3 Width: 11.8
Box 3 Height: 2.7
Box 3 Weight: 25
Box - Bundle Length: 117
Box - Bundle Width: 29
Box - Bundle Height: 23
Box - Bundle Weight: 476
Pallet Length: 117
Pallet Width: 29
Pallet Height: 33
Pallet Weight: 875
Density: 13.5
Class: 85
Sub: 8
SHIPPING FROM CITY, STATE, ZIP: Bloomington, MN 55431
COUNTRY OF ORIGIN: Israel
ASSEMBLY REQUIRED: Yes
MINIMUM SHIPPING LEADTIME (DAYS): 3
MAXIMUM SHIPPING LEADTIME (DAYS): 5
Owner's Manual
