Palram Herald 2230 Awning

Regular price $859.00
Regular price Sale price $859.00
Free Shipping to 48 States
Contact Us

Palram - Canopia

Shipping Price Match Returns Why Choose Planet Greenhouse?

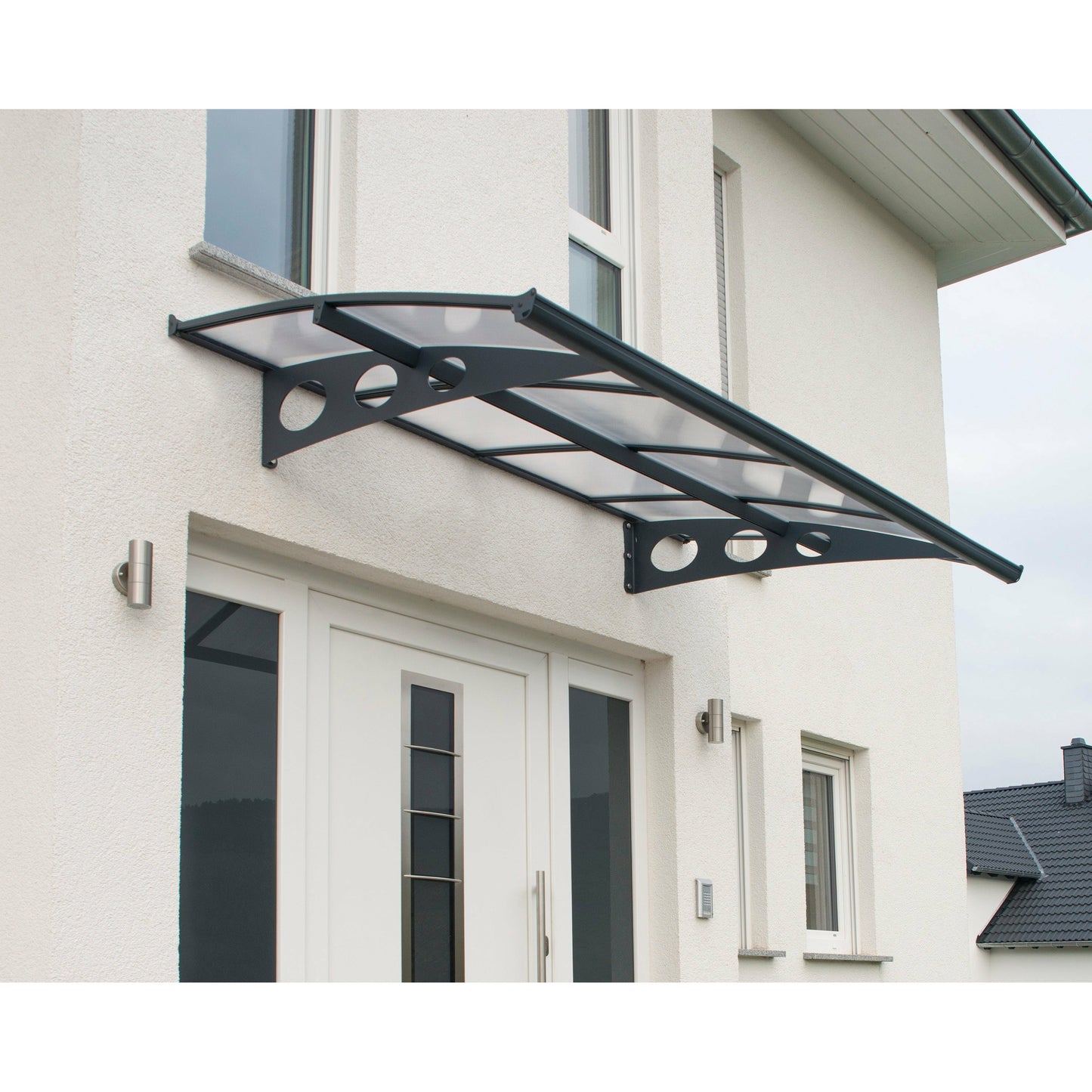

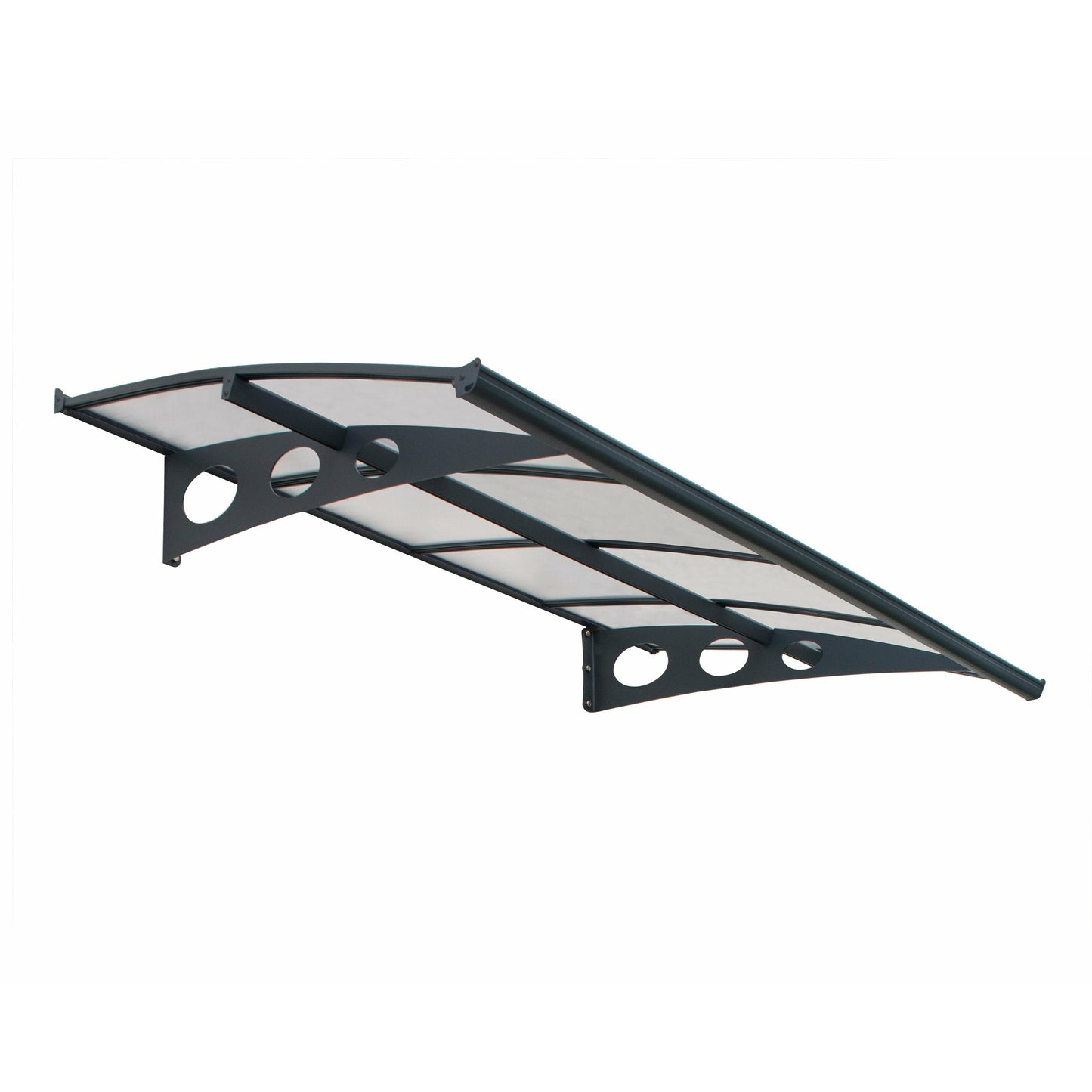

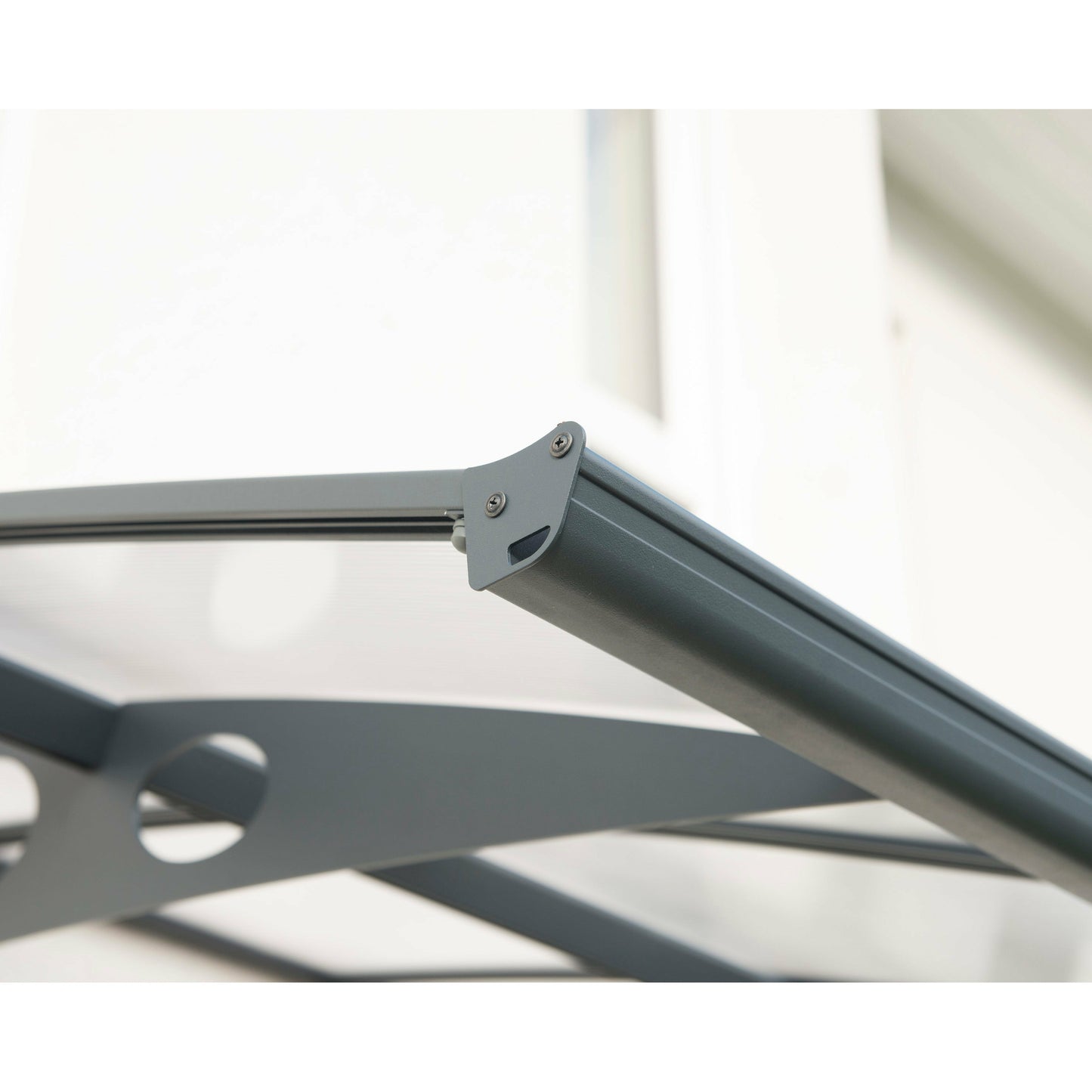

The Palram - Canopia Herald 2230 Door Awning was designed to keep your entrance area dry and to protect it from the elements. Manufactured with long lasting materials, the Herald features powder coated galvanized steel support arms and aluminum front and back trims. The roof panels are twin-wall polycarbonate, which are virtually unbreakable and 100% UV protected, ensuring years of quality protection. Other features include a front gutter and hidden rubber gasket system which help direct rain and snow off to the sides, keeping your entrance clear.


Feature:

  • Easy do-it-yourself awning kit perfect for doorways, entrance areas and windows
  • 6 mm twin-wall polycarbonate roof panels – virtually unbreakable, protects area from inclement weather and blocks 100% of harmful UV rays

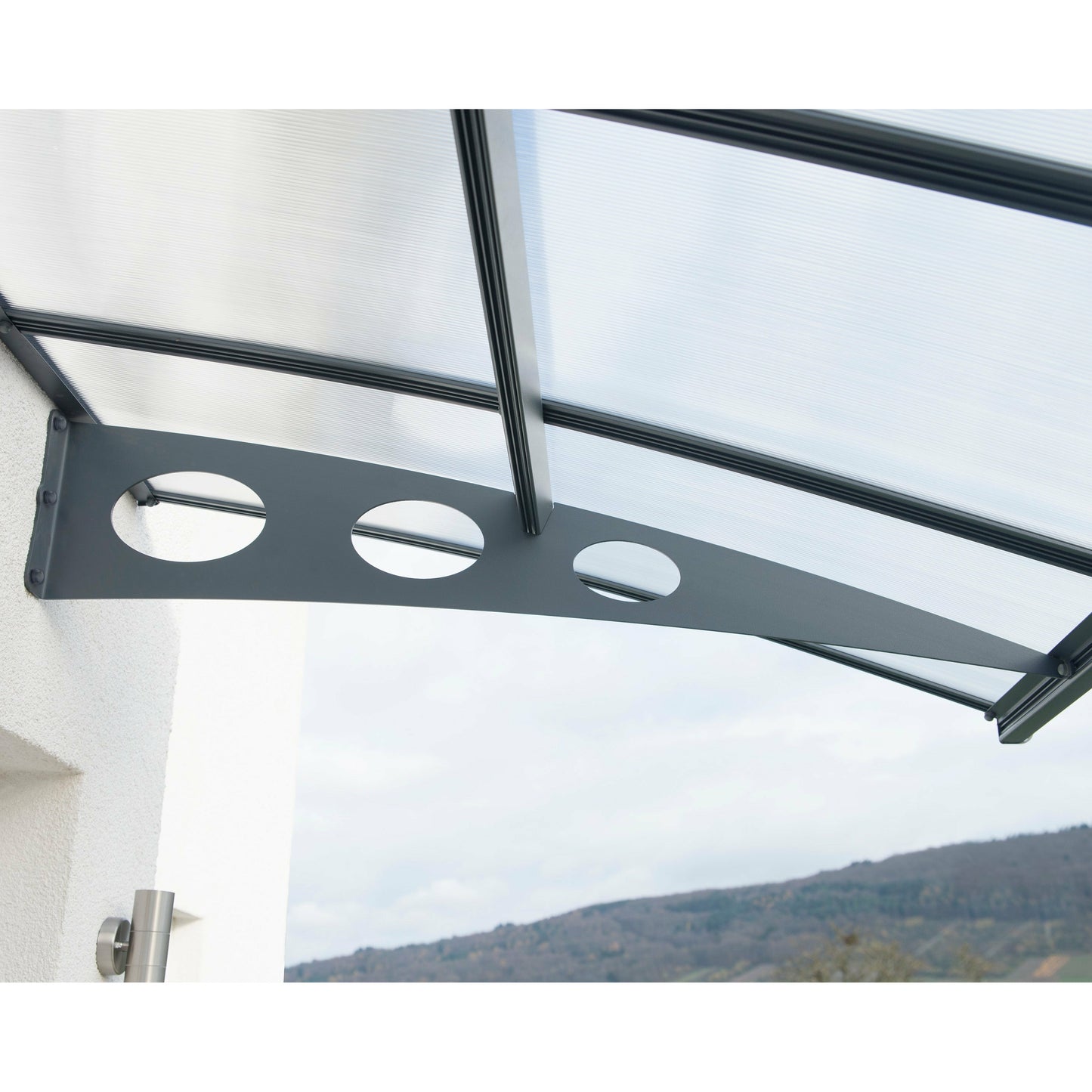

  • Laser cut, powder coated gray galvanized steel support arms
  • Includes front gutter and hidden rubber gasket which direct rain and snow off to the sides
  • Snow load of 25 lbs s/f and wind resistance of 75 mph
  • 3 year warranty with U.S based customer support


Specifications:

Model: HG9576
Limited Warranty: 3 years
Size (ft, rounded): 7 x 5
Sq Feet (rounded): 33
Dimensions (ft, rounded):
 7 x 5
Length (in):
 88
Width (in):
 54.7
Height (in, peak): 13

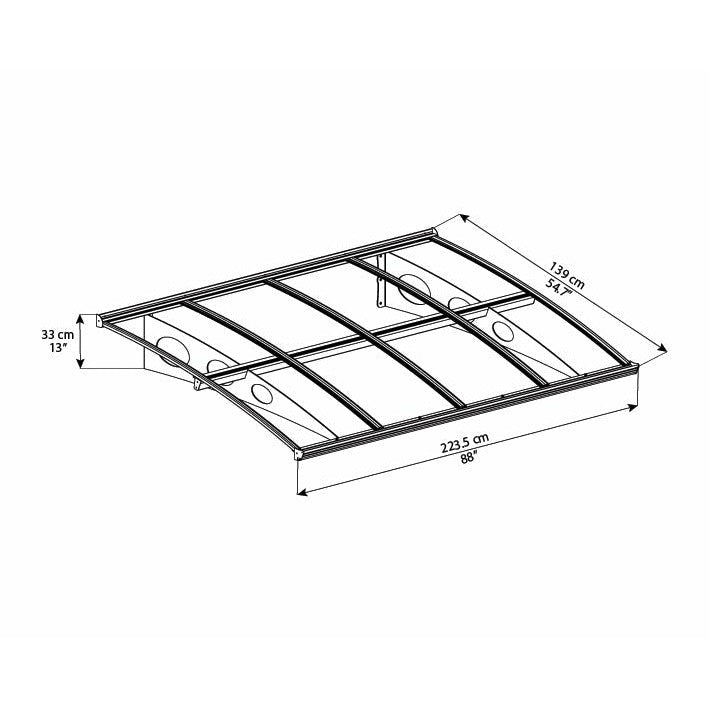

Dimensions (in): 88" L x 55" W x 13" H
Total Product Weight: 65.05
Snow Load (Lbs/Sq Ft): 24.6
Windload (MPH): 75
Light Transmission (%): 80
Roof Material: 6mm Twin Wall Polycarbonate
Roof Color: Translucent
Frame Material: Galvanized Steel
Frame Color: Gray
Ship Method: LTL
Lift Gate Available For Additional Charge: Y
Total Box Qty (Calculated): 1
Box 1 Qty: 1
Box 1 Part No: HG9580
Box 1 UPC: 763552406699
Box 1 Name/Desc: Herald 2230
Box 1 Length: 90.4
Box 1 Width: 24.2
Box 1 Height: 3.1
Box - Bundle Length: 90
Box - Bundle Width: 24
Box - Bundle Height: 3
Box - Bundle Weight: 65
Pallet Length: 92
Pallet Width: 32
Pallet Height: 8.1
Pallet Weight: 105.05
Density: 7.61
Class: 125
Sub: 5
SHIPPING FROM CITY, STATE, ZIP: Bloomington, MN 55431
COUNTRY OF ORIGIN: Israel
ASSEMBLY REQUIRED: Yes
MINIMUM SHIPPING LEADTIME (DAYS): 3
MAXIMUM SHIPPING LEADTIME (DAYS): 5
Owner's Manual
